Turn reality capture data into usable asset information that supports system planning and grid modernization, from engineering and construction through operations and maintenance.
7,900 km delivered in 6 weeks.
“Instead of beginning from scratch, Mach9 gave us a full network upfront, so we could immediately identify gaps. If there was ambiguity in the data, we could revisit it instantly, review the object, and get a decision in minutes.”
Alex Hill-Stosky
Manager, Reality Capture Development & Regulation, Eagle Engineering and Consulting
3 days vs. 60+ with traditional methods.
“We backload the decision-making to the office, so the right people make the right calls with the right data. This is the future of how design gets done.”
Nicholas Pena
VP of Engineering, Fibersmith
51 miles, engineering-ready in days.
“We made a significant investment in LiDAR technology in anticipation of the industry's shift toward digital data collection. Mach9 enhances the value of that investment by transforming raw field data into engineering-ready deliverables.”
Matt Woolley
Vice President of Information Technology, TrueNet Communications
SPEED
A 100-mile transmission corridor's line model used to take months. Drafting in Mach9 runs under an hour per mile.
DRAFTING PER MILE
ECONOMICS
Lower cost on every mile. The same distance at a fraction of the production cost.
LOWER COST
COMPATIBLE
Export as DXF, DWG, DGN, Shapefile, Geodatabase, LandXML, or IFC. Deliverables that fit your CAD, GIS, PLS-CADD and transmission design workflows.
EXPORT FORMATS
Grid programs move fast. Manual drafting doesn't.
Incomplete records require sending another crew and truck out to substations and energized lines.
Manual drafting creates a production bottleneck, resulting in delays compounding at every stage downstream.
Assets are failing in the field. The hardening and undergrounding projects meant to fix them are blocked by manual, disconnected workflows.
Subbed-out extraction comes back inconsistent, and the cleanup lands back on your team.
From capture to engineering-ready deliverables.
From capture to engineering-ready deliverables.
01 / 03

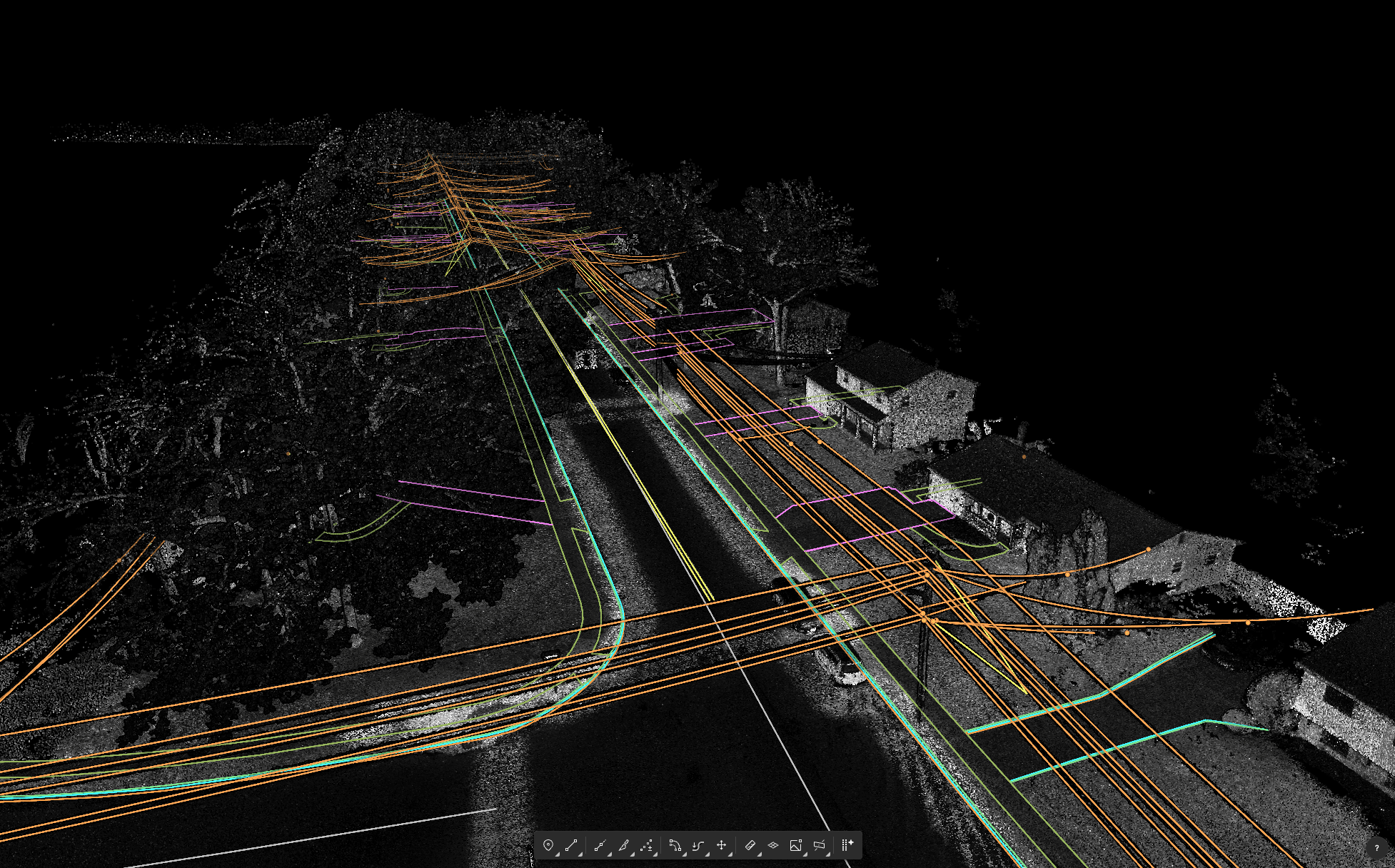

Poles, structures, conductors, and vegetation extracted from reality capture at network scale. Your team starts from a polished first draft, ingested from any scanner.
02 / 03

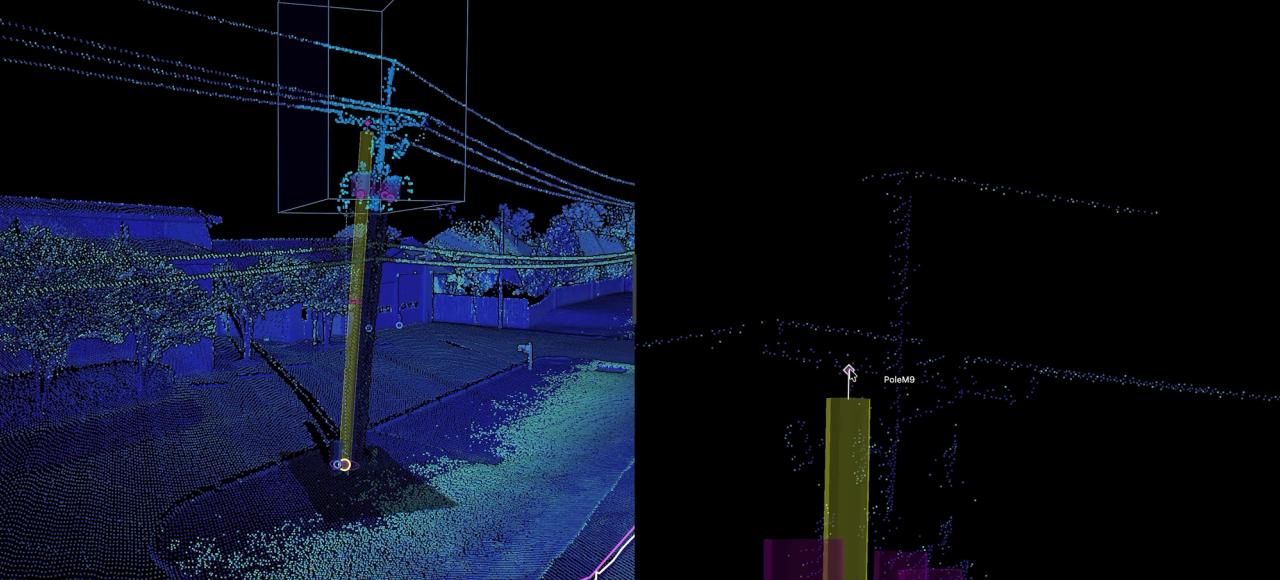

Semi-automated workflows with full CAD precision for fine-tuning. Seamless QA workflows paired with powerful editing tools like snapping, vertex editing, cross-sections, and more.
03 / 03

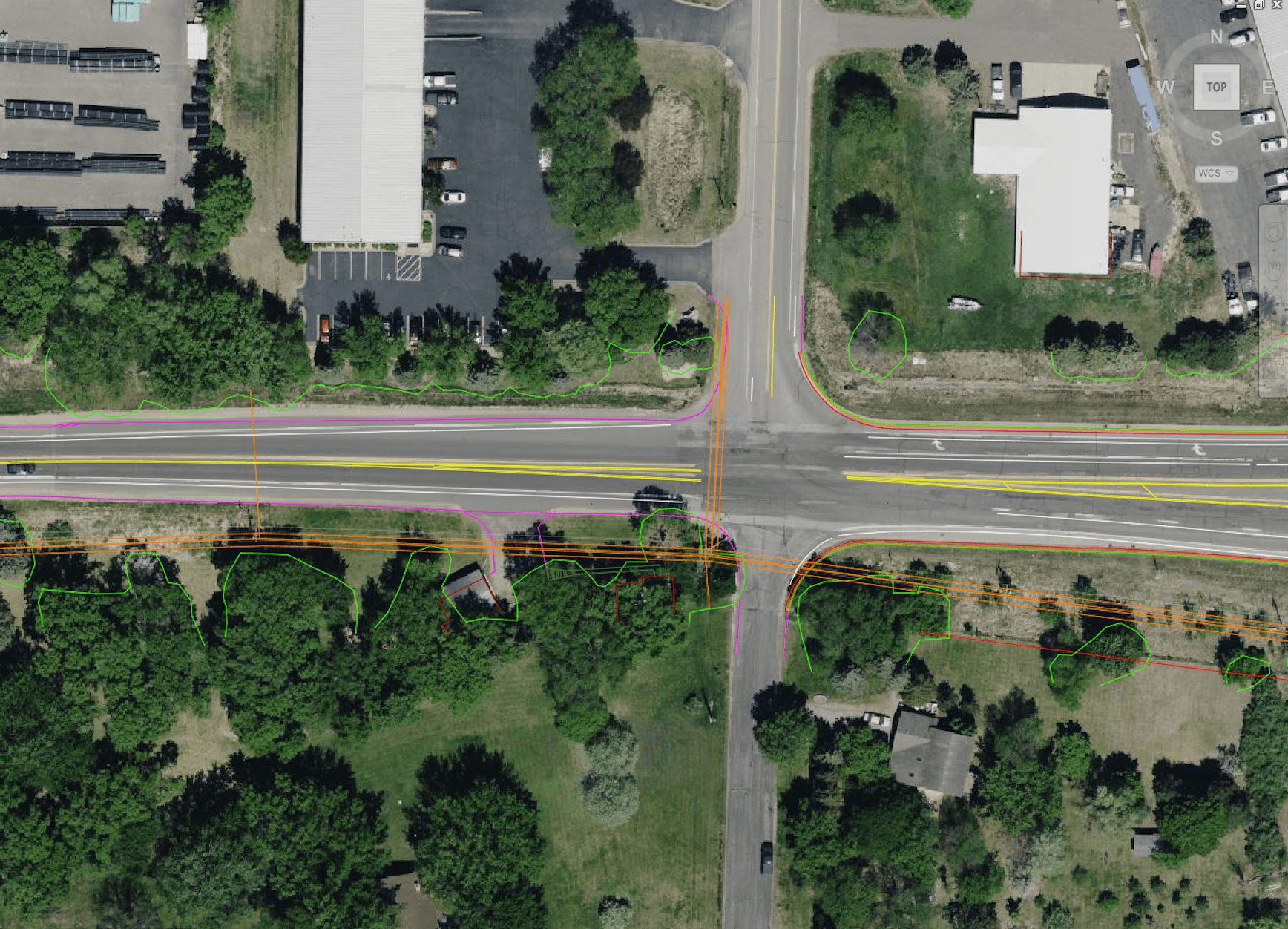

CAD and GIS exports that drop into your PLS-CADD and pole inventory workflows. Customize and export schema-aligned CAD and GIS deliverables.

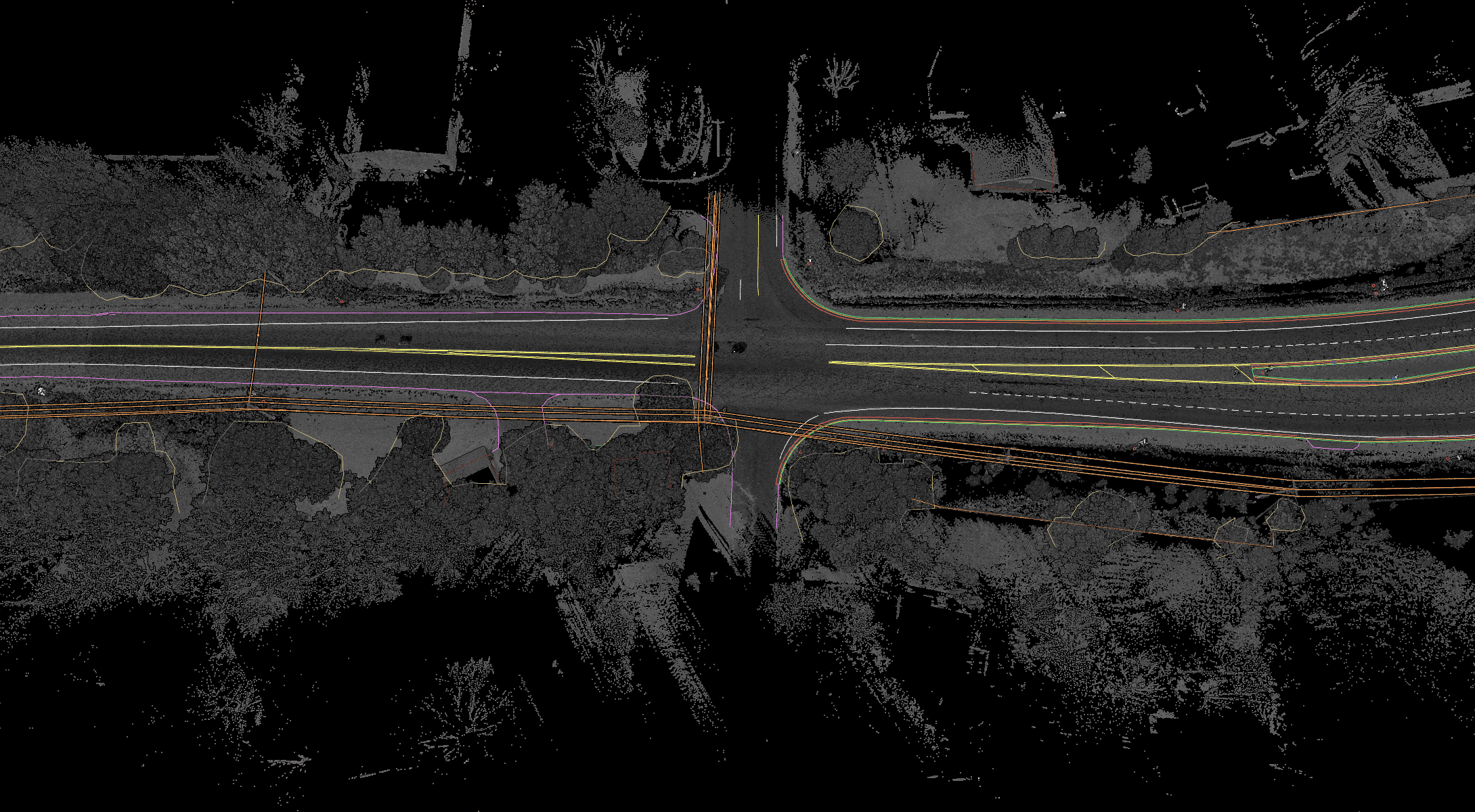

Vehicle, terrestrial, drone, or handheld. Mach9 turns point clouds and imagery from any scanner into deliverables.
Site surveys for power plants, dams, and solar and wind farms. Design-grade existing conditions for site planning.

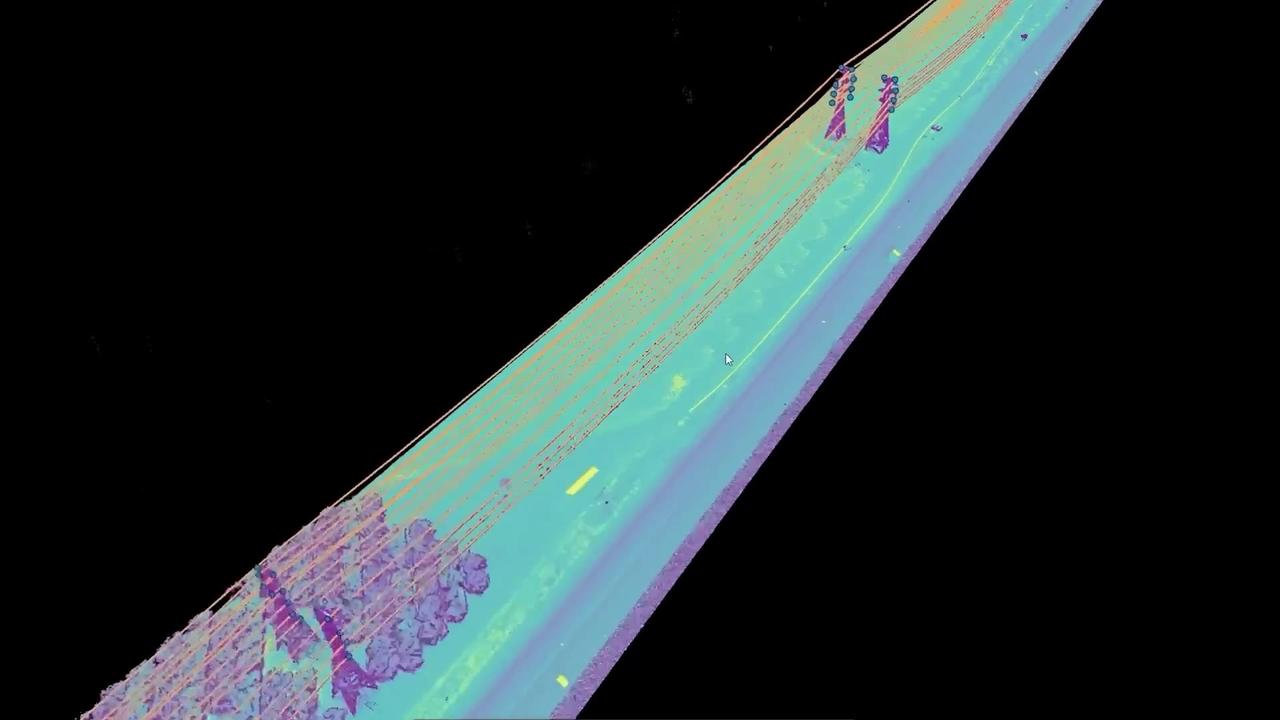

Corridor mapping, base mapping, overhead power line modeling, and data center interconnection studies.
Network-scale inventory, substation modeling, condition assessment, NESC compliance inspections, and joint-use assessment. Accurate asset records, configured to your specifications. Replacing outdated legacy data.
Conductor clearance assessment, wildfire mitigation, and regulatory studies. Network-scale vegetation records, refreshed on your cycle.
Send us a sample dataset and see Mach9 in action on your own data. Cut time and cost without sacrificing accuracy.
